DSO cooled camera line is the most advanced product line in Player One history.
We start the project from 2021, through a lot of modify and rebuild we made this final version.
It brings our newest technology and design to everyone, we are very proud to introduce this camera line.
| Sensor | New SONY IMX533 1" CMOS (color) |
|---|---|
| Diagonal | 16mm |
| Total Pixels | 9 Mega Pixels |
| Max Resolution | 3008×3008 |
| Pixel Size | 3.76μm |
| Bayer Pattern | RGGB |
| Chip Size | 11.31mm×11.31mm |
| Frame Rate | 43FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs–2000s |
| Readout Noise | 4.46–1e |
| Full Well | 73k e |
| QE Peak | ≈80% |
| ADC | 14 bit |
| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | The camera's maximum power consumption is 3A, requiring a power adapter with a minimum rating of 5A. |
| Delta T | 35°C–40°C (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D32×2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | USB3.0/USB2.0 |
| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5mm |
| Diameter | 78mm |
| Weight | 420g |
| Resolution and FPS | Under USB3.0 mode Resolution Raw8 Raw16 3008×3008 43FPS 19.5FPS 2560×1440 95FPS 40FPS 1920×1080 125FPS 53FPS 1280×720 185FPS 79FPS 800×600 220FPS 93FPS 640×480 272FPS 115FPS More resolution options could be setup in capture softewares! |
| Ares-C PRO Purchase Options | Camera, Camera + Filter Drawer MINI + FHD-OAG MINI + S-series 1.25" UV IR-CUT filter |
We prioritize quality in selecting the materials for our items, choosing premium fabrics and finishings that ensure durability, comfort, and timeless appeal.
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
DSO cooled camera line is the most advanced product line in Player One history.
We start the project from 2021, through a lot of modify and rebuild we made this final version.
It brings our newest technology and design to everyone, we are very proud to introduce this camera line.
| Sensor | New SONY IMX533 1" CMOS (color) |
|---|---|
| Diagonal | 16mm |
| Total Pixels | 9 Mega Pixels |
| Max Resolution | 3008×3008 |
| Pixel Size | 3.76μm |
| Bayer Pattern | RGGB |
| Chip Size | 11.31mm×11.31mm |
| Frame Rate | 43FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs–2000s |
| Readout Noise | 4.46–1e |
| Full Well | 73k e |
| QE Peak | ≈80% |
| ADC | 14 bit |
| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | The camera's maximum power consumption is 3A, requiring a power adapter with a minimum rating of 5A. |
| Delta T | 35°C–40°C (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D32×2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | USB3.0/USB2.0 |
| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5mm |
| Diameter | 78mm |
| Weight | 420g |
| Resolution and FPS | Under USB3.0 mode Resolution Raw8 Raw16 3008×3008 43FPS 19.5FPS 2560×1440 95FPS 40FPS 1920×1080 125FPS 53FPS 1280×720 185FPS 79FPS 800×600 220FPS 93FPS 640×480 272FPS 115FPS More resolution options could be setup in capture softewares! |
| Ares-C PRO Purchase Options | Camera, Camera + Filter Drawer MINI + FHD-OAG MINI + S-series 1.25" UV IR-CUT filter |
There are currently no frequently asked questions about this product

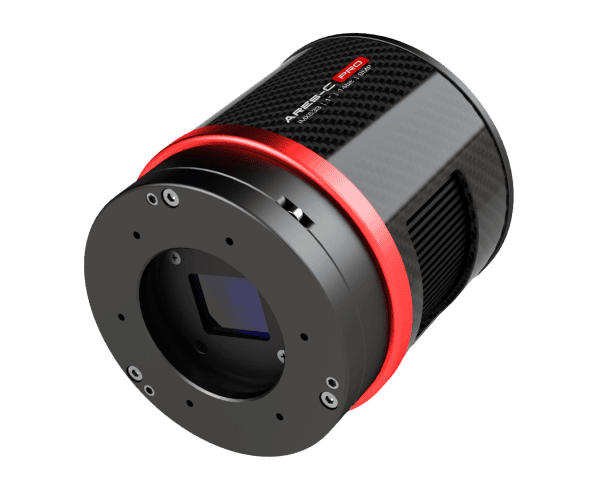

Ares-C Pro (IMX533) camera is developed by Player One Astronomy, this camera is not only great for DSO imaging, and also can do solar and lunar imaging too. Ares-C Pro camera, which adopts Sony IMX533 1” square format color sensor. The 3.76um pixel size accommodates a well depth of 73Ke with a total of 9MP (the resolution is 3008*3008), and the diagonal is 16mm.

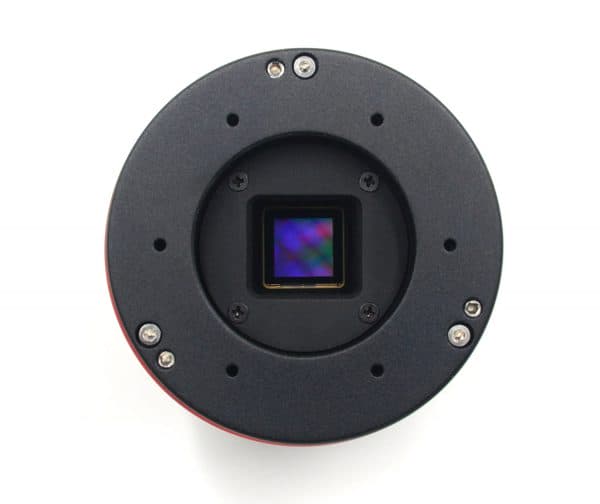

Ares-C Pro (IMX533) camera based on Sony STARVIS technology, it is back-illuminated pixel technology used in CMOS image sensors.

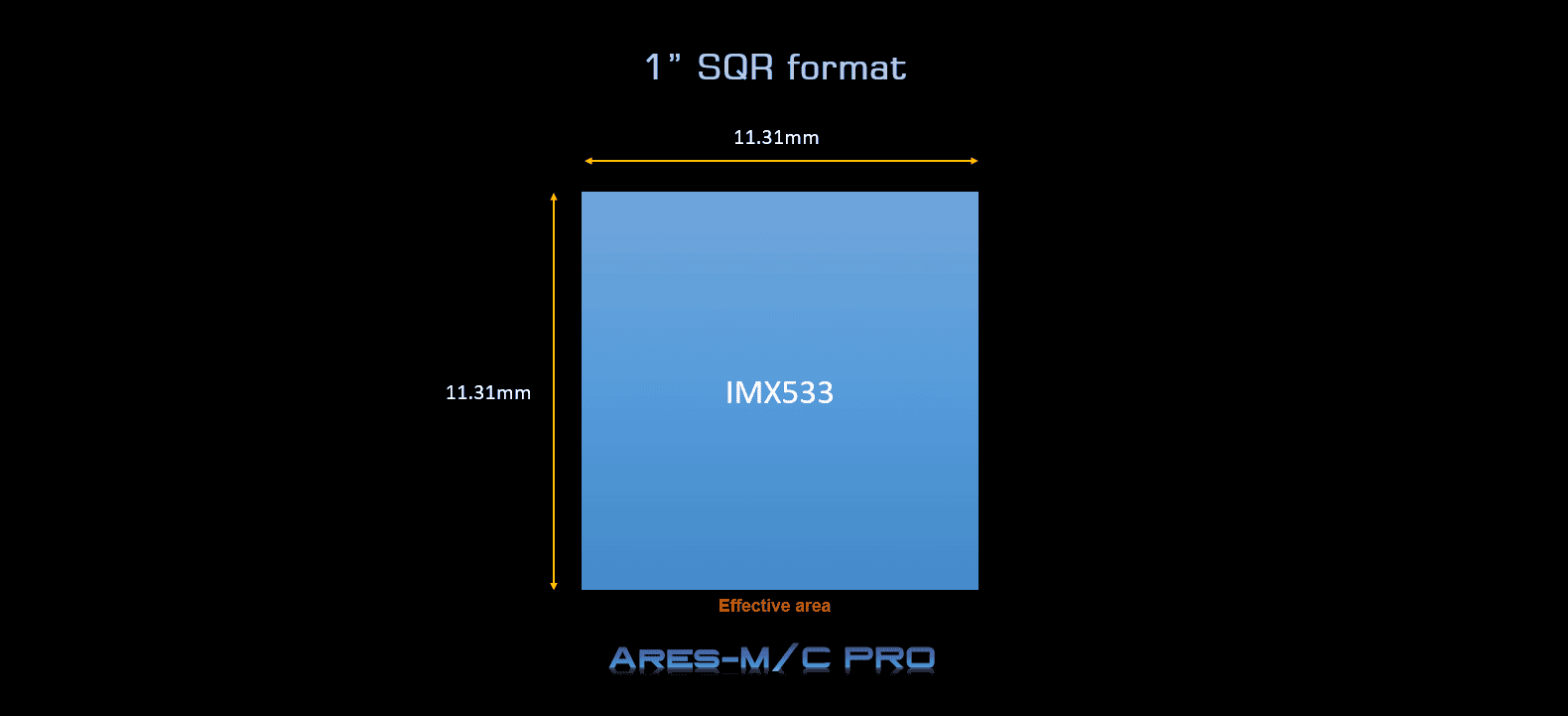

Ares-C Pro camera has 1″ format, this size is quite big for imaging.
The Ares cooled series is starting with a new design! This time with a round body, a classic red and black color scheme, and using carbon fiber to keep weight down and cutting-edge outlook. We also integrated the sensor tilter plate and anti-dew PCB board. This series of designs makes the camera not only light and cool, but also functional!

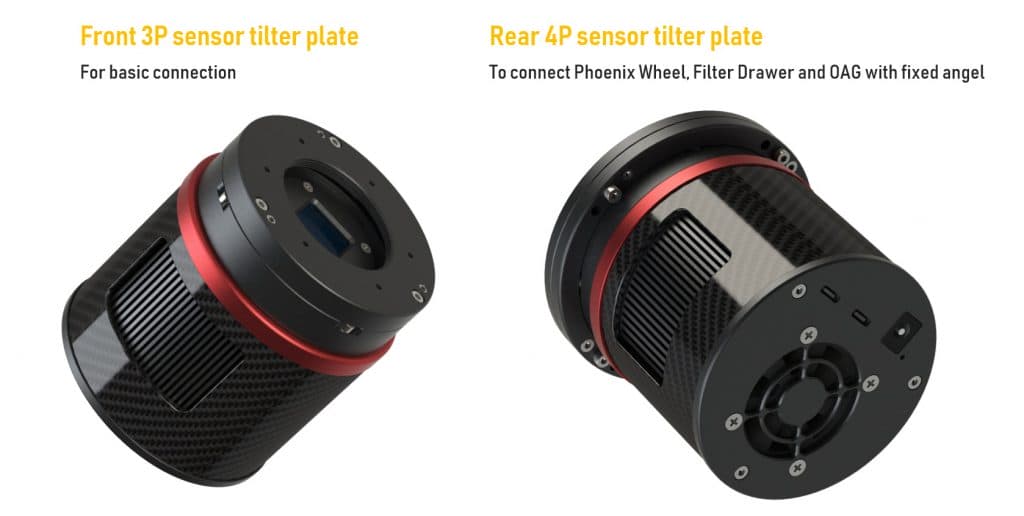

When shooting deep sky objects, the sensor tilt plate can be used to adjust the sensor tilt angle to make the stars at the corners more rounded. Ares camera provide both front and Rear tilter plate fulfill all usage scenarios.
Front 3P tilter plate is the default part on camera, we believe most users has experience with this before. it works well in a lot of basic scenarios.
Rear 4P tilter plate is an alternate part for camera, when use filter wheel/filter drawer and OAG with fixed angel, it is necessary. And it is also convenient for RASA users to adjust the sensor tilt angel.
The built-in high-density sponge shading pad can block the light from the side slits without any side leakage.

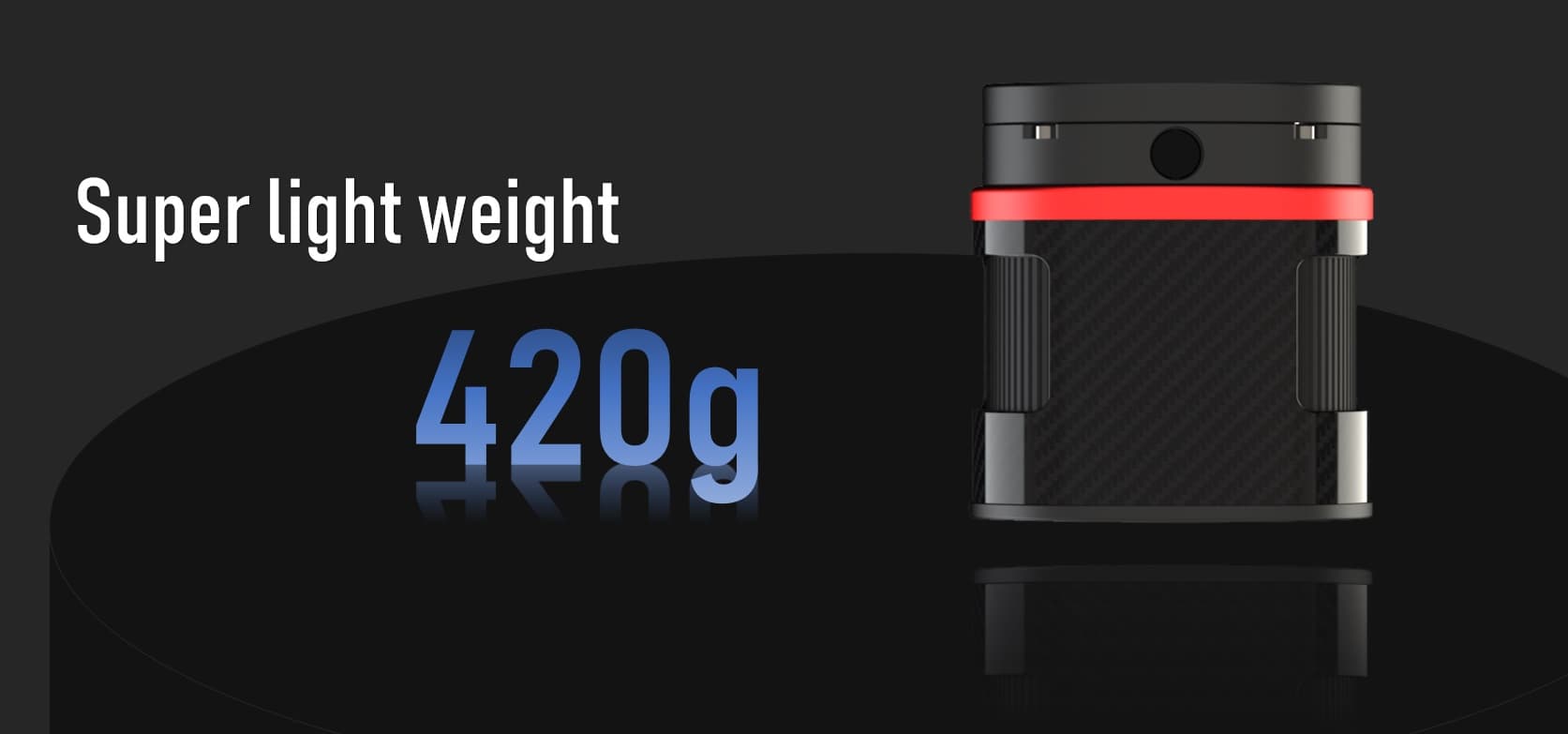

The Ares series uses a carbon fiber in camera hausing and has been optimized for weight reduction in its structural design. The camera weighs only 420 grams, making it one of the lightest models on the market.
Player One cooled camera series use 2 Stage TEC Cooling unit, after improved the structure design to reject the heat back to camera chamber, Camera Delta-T can reach 35-40℃.

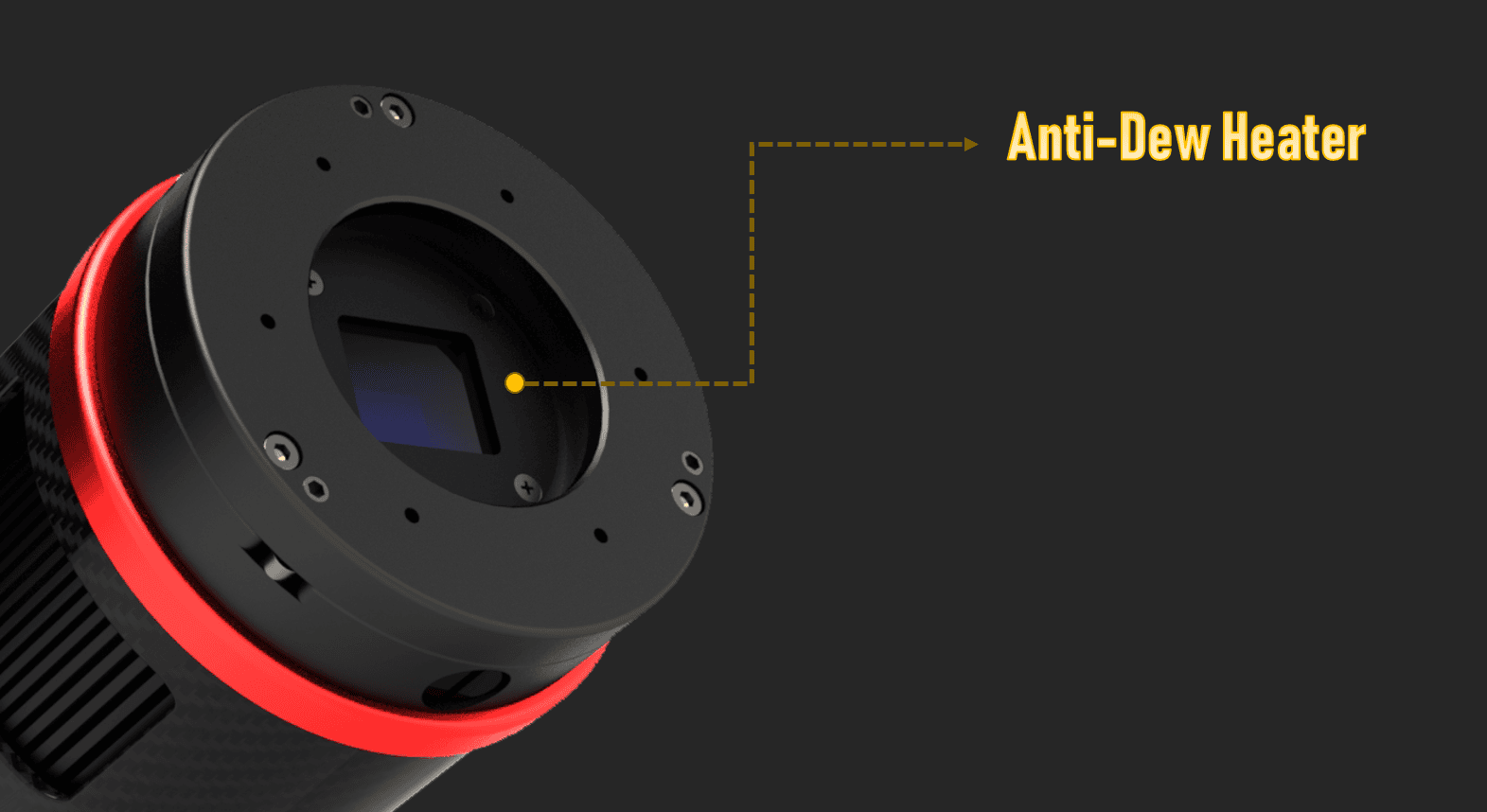

In the design of lightweight cooled cameras, Player One still pursuing the perfection, any necessary features must have, especially anti-dew system, is the problem that a lot of small cooled cameras ignored.
Ares-C Pro camera has 73Ke full well, it’s almost 1.5 times than IMX533 Basic (50ke).

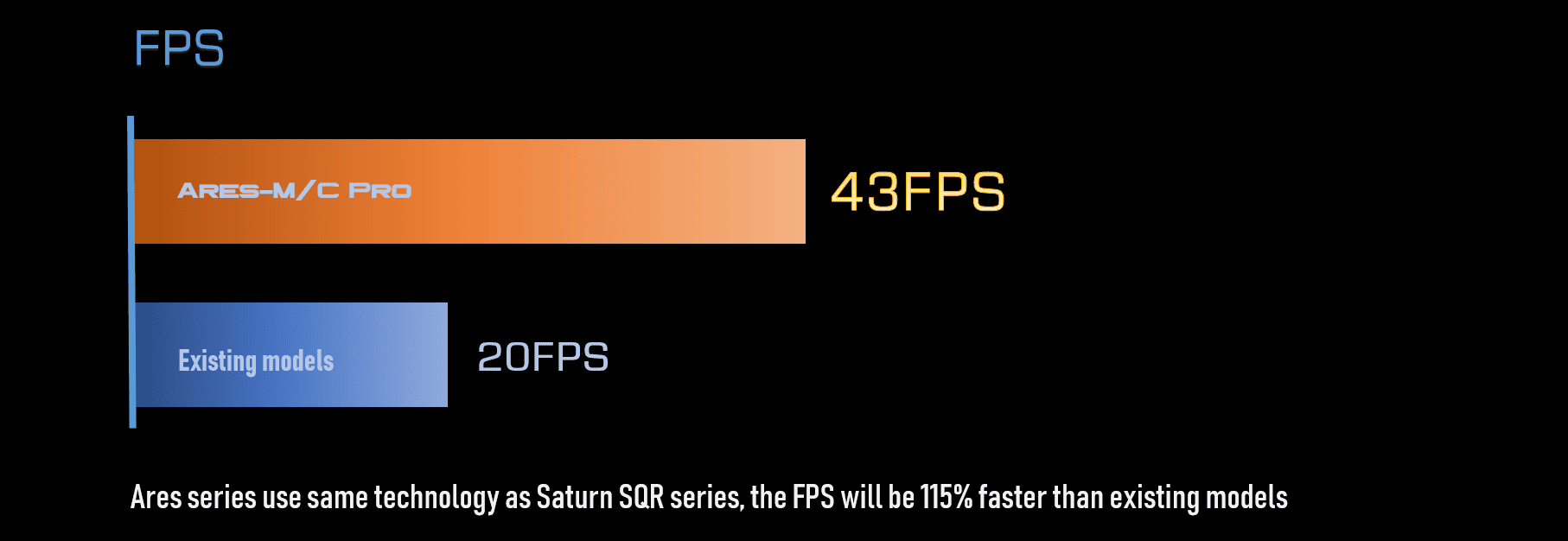

Ares-C Pro camera can run 43FPS under RAW8 mode, that’s much faster than existing models on market.

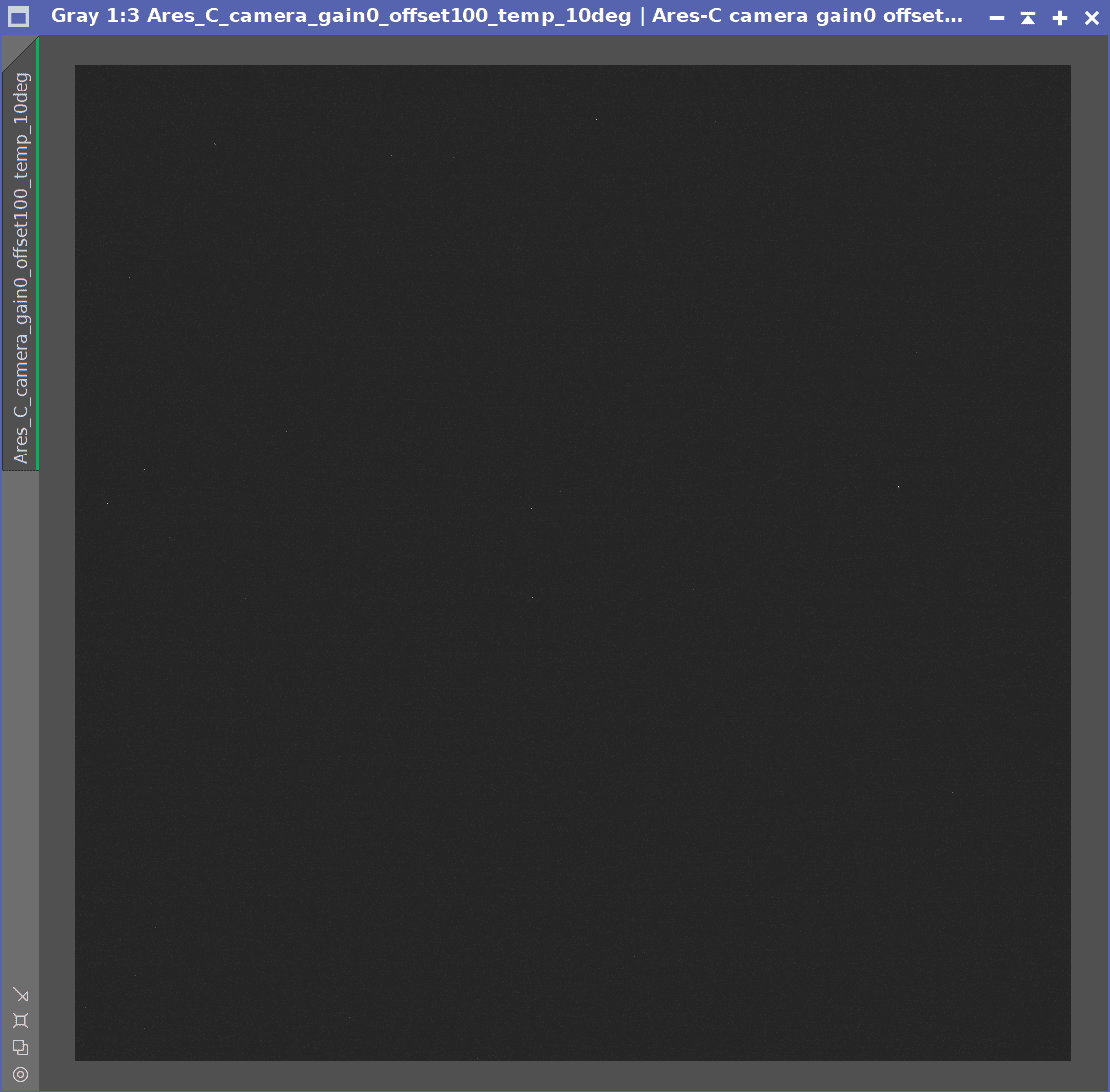

Dark frame of Ares-C PRO (IMX533) camera is totally “dark”, it is also “Non-Amp-Glow” camera too!
Non-Amp-Glow can give us very clean background, much easier to get high quaility images.
Ares-C PRO camera also very good for solar, lunar and planetary imaging. Its 1″ square sensor can easily capture full disk of the Sun and Moon with short focal refractors. And it also could make mosaic work more efficient.

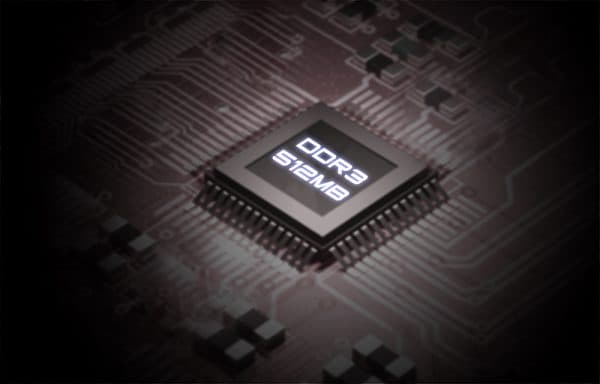

As an improvement, DDR3 cache in cooled cameras are increased to 512MB. It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readout noise.
With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.

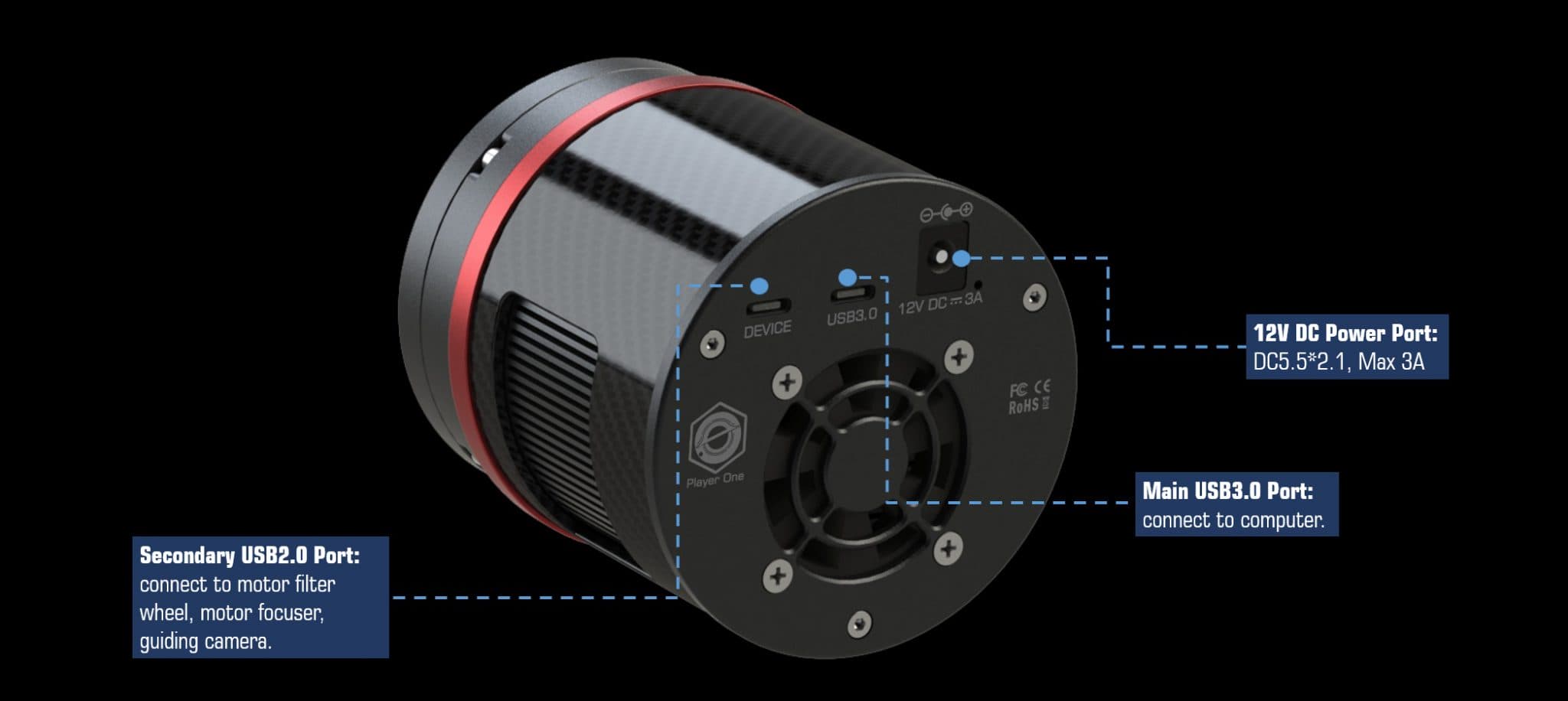

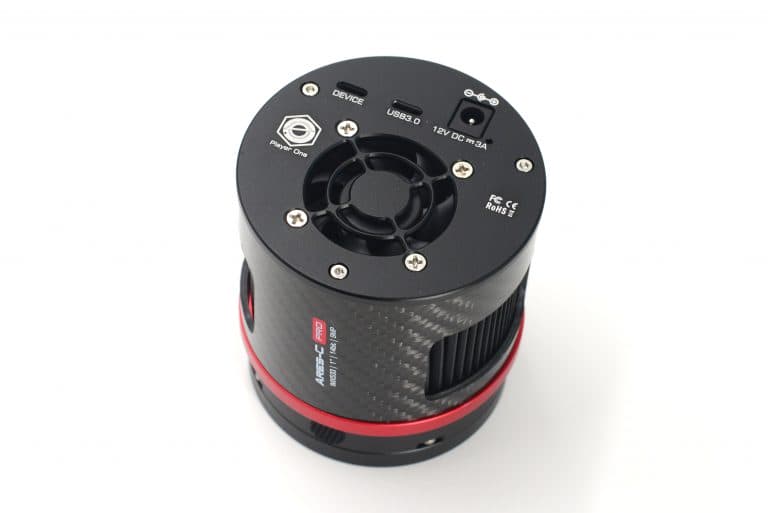

Back piece of cooled camera has 2 Type-C data port and 12V DC 5.5×2.1mm power port.
Main data port support USB3.0 protocol, the camera can run 43fps under RAW8 mode. Type-C port is easier to plug in when assemble the imaging equipment in night.
When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.
The camera has 12V DC5.5*2.1mm port to provide enough power to TEC cooling system. If you don’t need to power up cooling, only need to connect the main Type-C port, the camera will works as a uncooled camera.
