DSO cooled camera line is the most advanced product line in Player One history.
We start the project from 2021, through a lot of modify and rebuild we made this final version.
It brings our newest technology and design to everyone, we are very proud to introduce this camera line.
| Sensor | New SONY IMX571 APS-C CMOS (mono) |
|---|---|
| Diagonal | 28.3mm |
| Total Pixels | 26 Mega Pixels |
| Max Resolution | 6252×4176 |
| Pixel Size | 3.76μm |
| Chip Size | 23.5mm×15.7mm |
| Frame Rate | 10FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs–2000s |
| Readout Noise | 3.9–1.0e |
| Full Well | 71.7k e |
| QE Peak | ≈91% |
| ADC | 16 bit |
| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | The camera's maximum power consumption is 3A, requiring a power adapter with a minimum rating of 5A. |
| Delta T | 40℃ ± 2℃ (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D46×2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | Type-C USB3.0/USB2.0 |
| Adapter | M48X0.75, 2", 1.25" |
| Back Focal Length | 17.5mm, 12.5mm (without sensor tilt plate) |
| Diameter | 90mm |
| Weight | 650g |
| Resolution and FPS | Under USB3.0 mode Resolution Raw8 Raw16 6252×4176 15FPS 7FPS 3840×2160 36FPS 13FPS 2560×1440 53FPS 19.5FPS 1920×1080 70FPS 25.5FPS 1280×720 103FPS 37.5FPS 800×600 122.5FPS 44FPS 640×480 150FPS 54.5FPS |
We prioritize quality in selecting the materials for our items, choosing premium fabrics and finishings that ensure durability, comfort, and timeless appeal.
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
DSO cooled camera line is the most advanced product line in Player One history.
We start the project from 2021, through a lot of modify and rebuild we made this final version.
It brings our newest technology and design to everyone, we are very proud to introduce this camera line.
| Sensor | New SONY IMX571 APS-C CMOS (mono) |
|---|---|
| Diagonal | 28.3mm |
| Total Pixels | 26 Mega Pixels |
| Max Resolution | 6252×4176 |
| Pixel Size | 3.76μm |
| Chip Size | 23.5mm×15.7mm |
| Frame Rate | 10FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs–2000s |
| Readout Noise | 3.9–1.0e |
| Full Well | 71.7k e |
| QE Peak | ≈91% |
| ADC | 16 bit |
| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | The camera's maximum power consumption is 3A, requiring a power adapter with a minimum rating of 5A. |
| Delta T | 40℃ ± 2℃ (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D46×2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | Type-C USB3.0/USB2.0 |
| Adapter | M48X0.75, 2", 1.25" |
| Back Focal Length | 17.5mm, 12.5mm (without sensor tilt plate) |
| Diameter | 90mm |
| Weight | 650g |
| Resolution and FPS | Under USB3.0 mode Resolution Raw8 Raw16 6252×4176 15FPS 7FPS 3840×2160 36FPS 13FPS 2560×1440 53FPS 19.5FPS 1920×1080 70FPS 25.5FPS 1280×720 103FPS 37.5FPS 800×600 122.5FPS 44FPS 640×480 150FPS 54.5FPS |
There are currently no frequently asked questions about this product

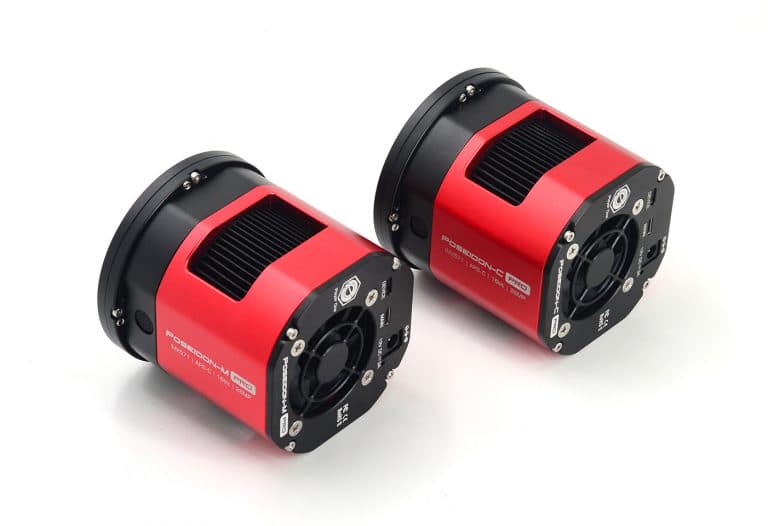

Poseidon-M Pro (IMX571) cooled camera is developed by Player One Astronomy, it’s design for advanced DSO imaging. it adopts Sony IMX571 APS-C format monochrome sensor. The 3.76um pixel size accommodates a well depth of 71.7Ke with a total of 26MP (the resolution is 6252*4176), and the diagonal is 28.3mm.
Polygon like regular hexagon is very Player One, the DSO cooled cameras we want to make it more beautiful and practical. After a lot of trying, we fix the final style, which uses a scientific and technological octagon to construct the main body line and 4 sides are cambered surface, supplemented by round chamfers to achieve both rigidity and flexibility. The front piece is round to avoid diffraction on RASA.The camera body is a vibrant red, accentuated with classic black trim.The sandblasted coating on the outer surface makes the camera look luxurious and cool, while inside this is a solid scientific instrument.

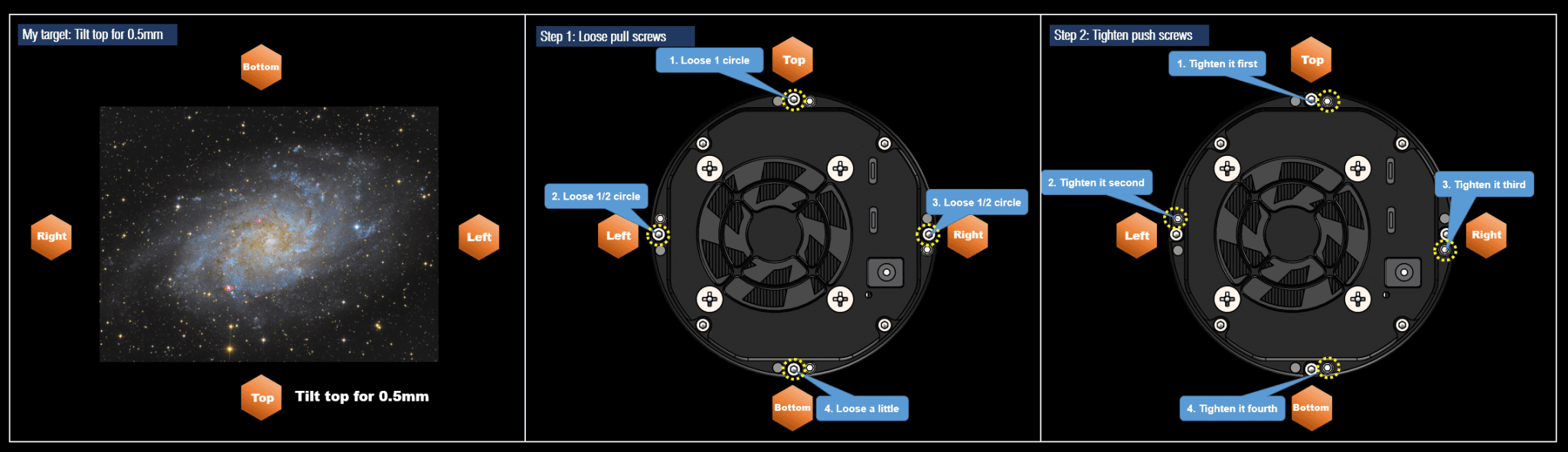

When taking deepsky objects, using sensor tilt plate can get a much smaller field curvature of the telescope. We adopts rear Adjustment and 4 point tilt plate, it has a lot advantages in usage.4 Point adjustment is easier to know which corner is needed to adjust. The built-in high-density sponge shading pad can block the light from the side slits without any side leakage.

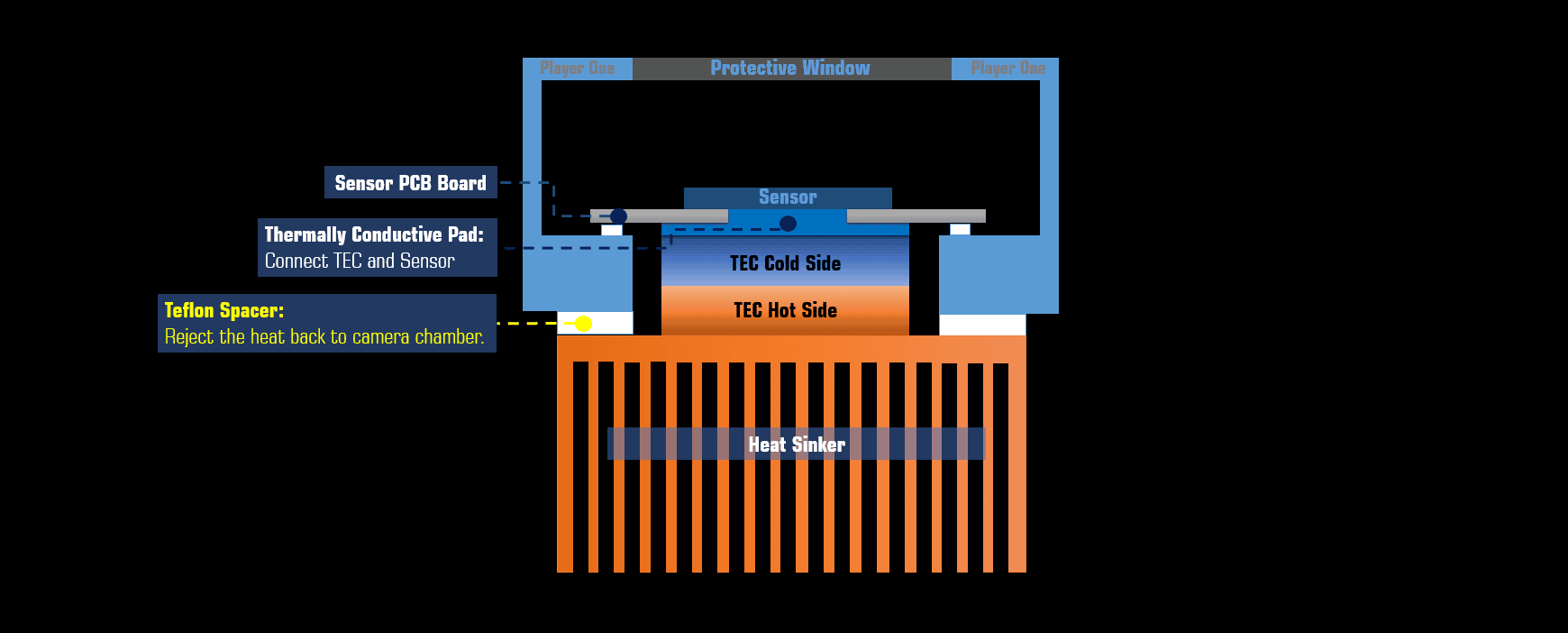

Player One cooled camera series use 2 Stage TEC Cooling unit, after improved the structure design to reject the heat back to camera chamber, Camera Delta-T can reach over 40℃.
As an improvement, DDR3 cache in cooled cameras are increased to 512MB. It helps stabilize and secure data transmission, it effectively avoids frame dropping and greatly reduces readout noise.
With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will still has excellent performance even if it is connected to a USB 2.0 port.
Poseidon-M Pro (IMX571) cooled camera based on Sony STARVIS technology, it is back-illuminated pixel technology used in CMOS image sensors.

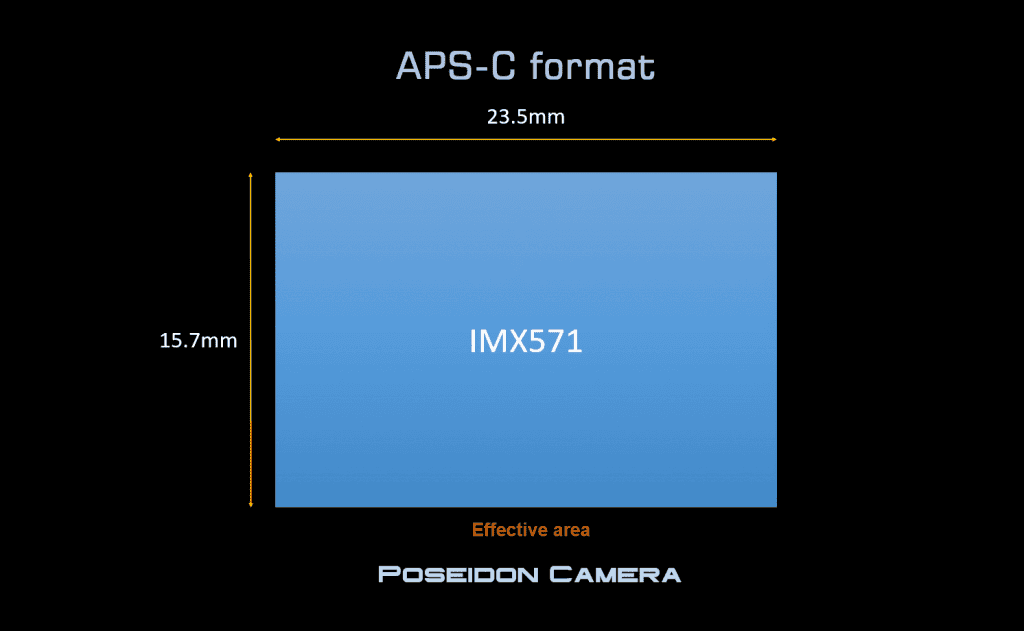

Poseidon-M Pro cooled camera has APS-C format (23.5mm*15.7mm), this size is quite big for DSO imaging.

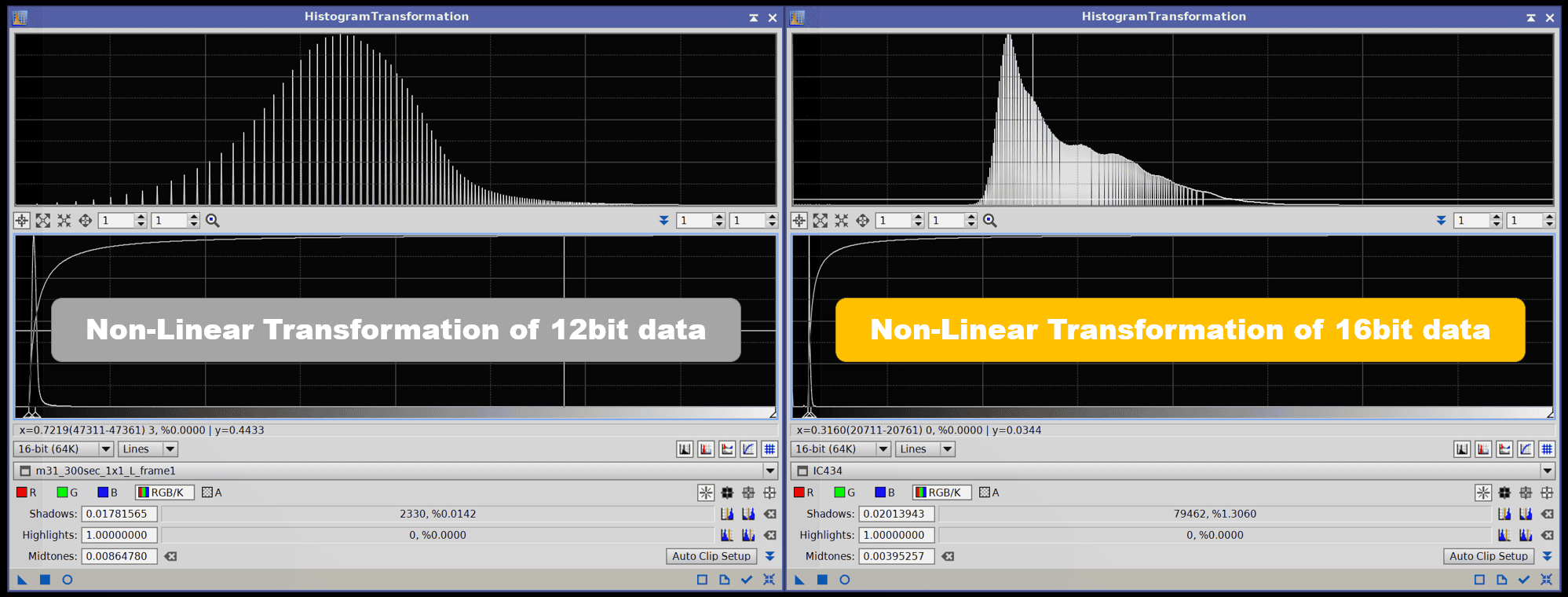

IMX571 sensor has native 16-bit on-chip ADC. Native 16bit ADC (65536 levels) provide higher sample resolution than 12bit (4096 levels) or 14bit (16384 levels). When we do non-linear transformation, 16bit data can endure very strong transform and also could bring much better light and dark transition, furthermore 16bit can make the color more vivid.

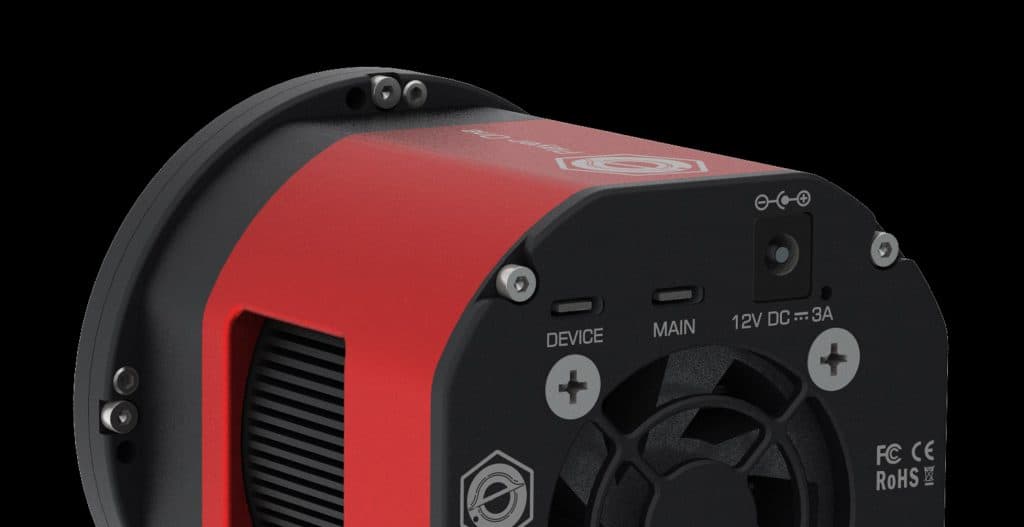

Back piece of cooled camera has 2 Type-C data port and 12V DC 5.5×2.1mm power port.
Main data port support USB3.0 protocol, the camera can run 15fps under RAW8 mode. Type-C port is easier to plug in when assemble the imaging equipment in night.
When recording images, since the actual writing speed will be affected by the writing speed of the hard disk itself, when the hard disk writing speed is slow, the recording may not reach the theoretical speed. It is recommended that you use a high-quality solid state drive to record data to give full play to the performance of the camera.
The camera has 12V DC5.5*2.1mm port to provide enough power to TEC cooling system. If you don’t need to power up cooling, only need to connect the main Type-C port, the camera will works as a uncooled camera.
